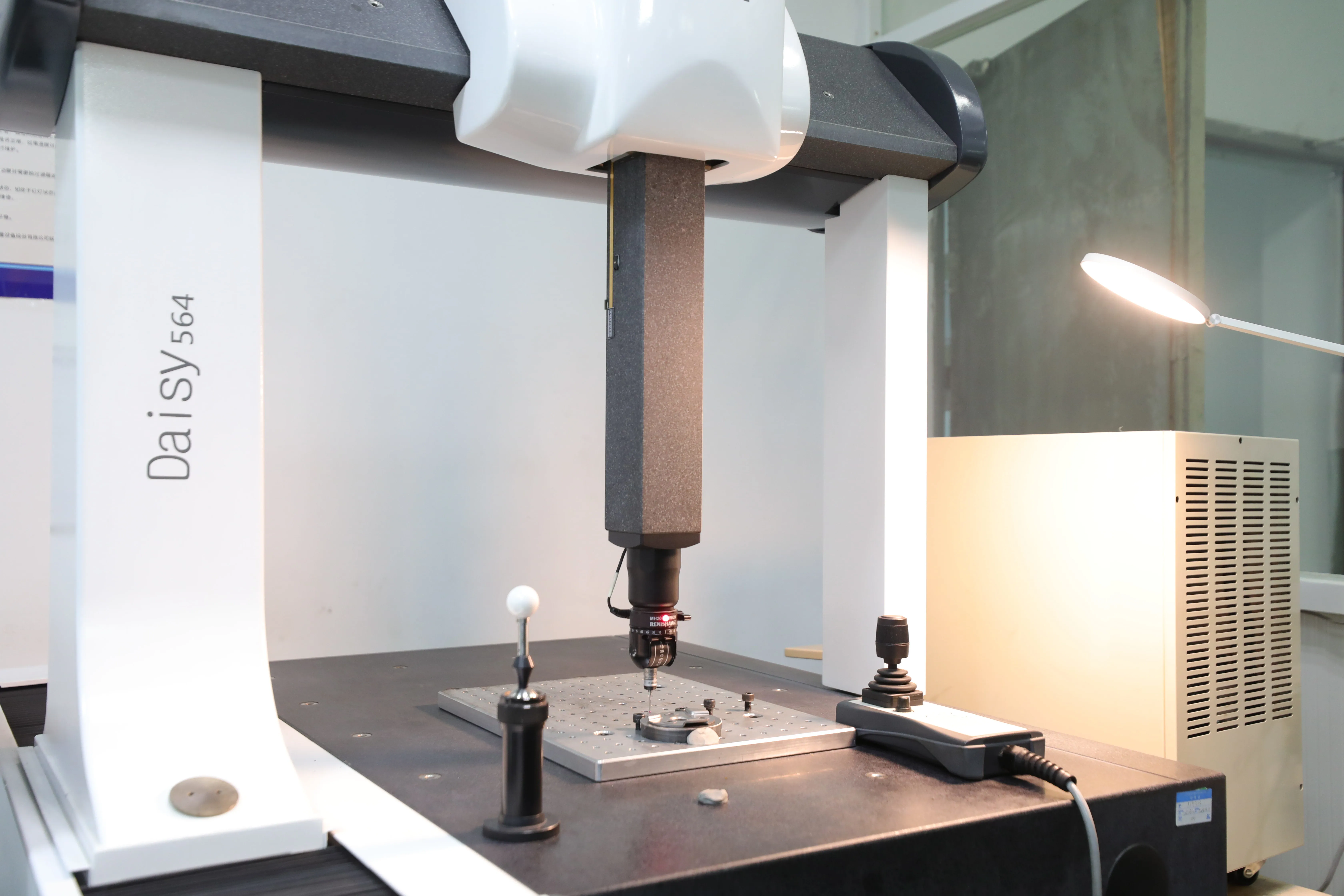

Coordinate Measurement
CMM resources support dimensional verification of drawing-defined features and critical dimensions.
Quality Assurance
Quality built into the route, not checked in at the end.
Inspection expectations are discussed with the manufacturing process so critical requirements, checkpoints and release records can be aligned before production.
Inspection Resources
Dimensional verification supported by real inspection facilities.
The manufacturing network includes dedicated inspection resources. Project-specific methods, sampling, reports and standards are confirmed from the actual drawing and customer requirement.
Before productionClarify critical dimensions, acceptance criteria and required documentation.
During productionApply the agreed inspection points within the manufacturing route.
Before releaseReview specified acceptance criteria and required records.
Inspection Evidence
Real resources supporting project-specific verification.
The images below are approved ROXARA or supporting-factory evidence. Exact methods and equipment availability are confirmed for each project.

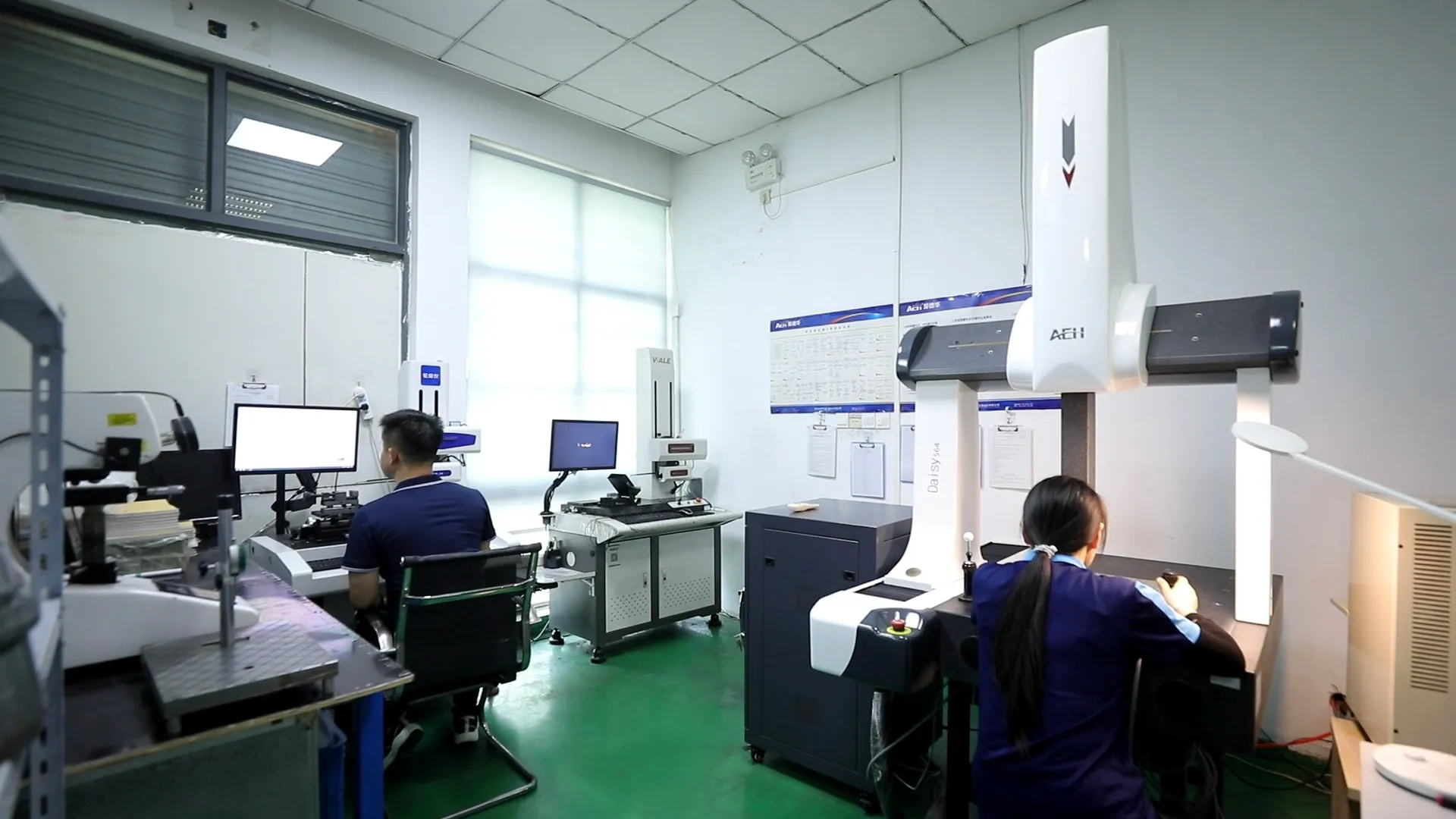

Inspection Laboratory
Dedicated inspection stations support project-specific measurement and record review.
Part & Drawing Review
The team reviews the part, drawing and inspection points before production decisions are finalized.
Control Sequence
Four points keep quality requirements visible.
The sequence connects the drawing, production route, inspection activity and release documentation without assuming a universal method for every part.
- 01Requirement Review
Confirm the drawing, material, critical features, standards and documentation needs.
- 02First-part Verification
Review the initial output against the agreed requirement before repeat production proceeds.
- 03In-process Inspection
Use project-defined checkpoints and sampling within the production route.
- 04Final Review & Records
Confirm specified acceptance criteria and the records required before release.
